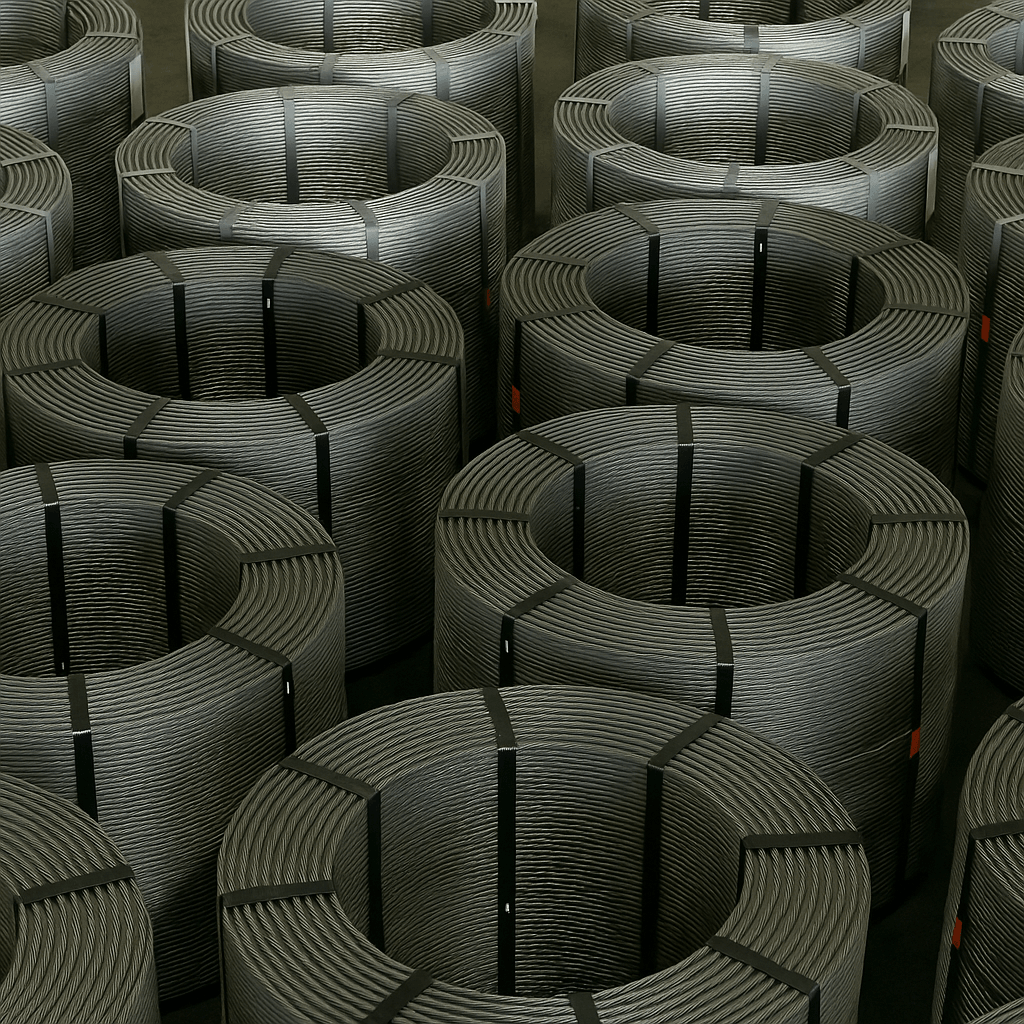

PC STRANDS
(Prestressed Concrete Strands)
High-quality 7-wire strands made from high carbon steel for prestressed concrete applications.
Overview
Plain PC Strand, also known as Plain Prestressed Concrete Steel Strand, is a twisted bundle of high-carbon steel wires — typically 2, 3, or 7 wires — without surface indentations. Engineered for high tensile strength and low relaxation, this strand is ideal for reinforcing various concrete structures.
Quality Control at EPCW
At EPCW, quality is not just a checkpoint — it’s embedded in every stage of our production. Our Quality Control System follows stringent inspection and testing procedures starting from raw materials to final product delivery, ensuring full compliance with international standards and customer specifications.
Technical Specifications
| Property | Value |
|---|---|
| Strand Gauge Sizes | 9.5 mm, 12.7 mm, 15.2 mm, 15.7 mm (others available upon request) |
| Tensile Strength | • 250 ksi (1725 MPa) • 270 ksi (1860 MPa) • Other grades (e.g., 1770 MPa) available per international standards |
| The Modulus of Elasticity | 190-210 Gpa |
| Coil Weight | 2.5 – 3.5 tons |

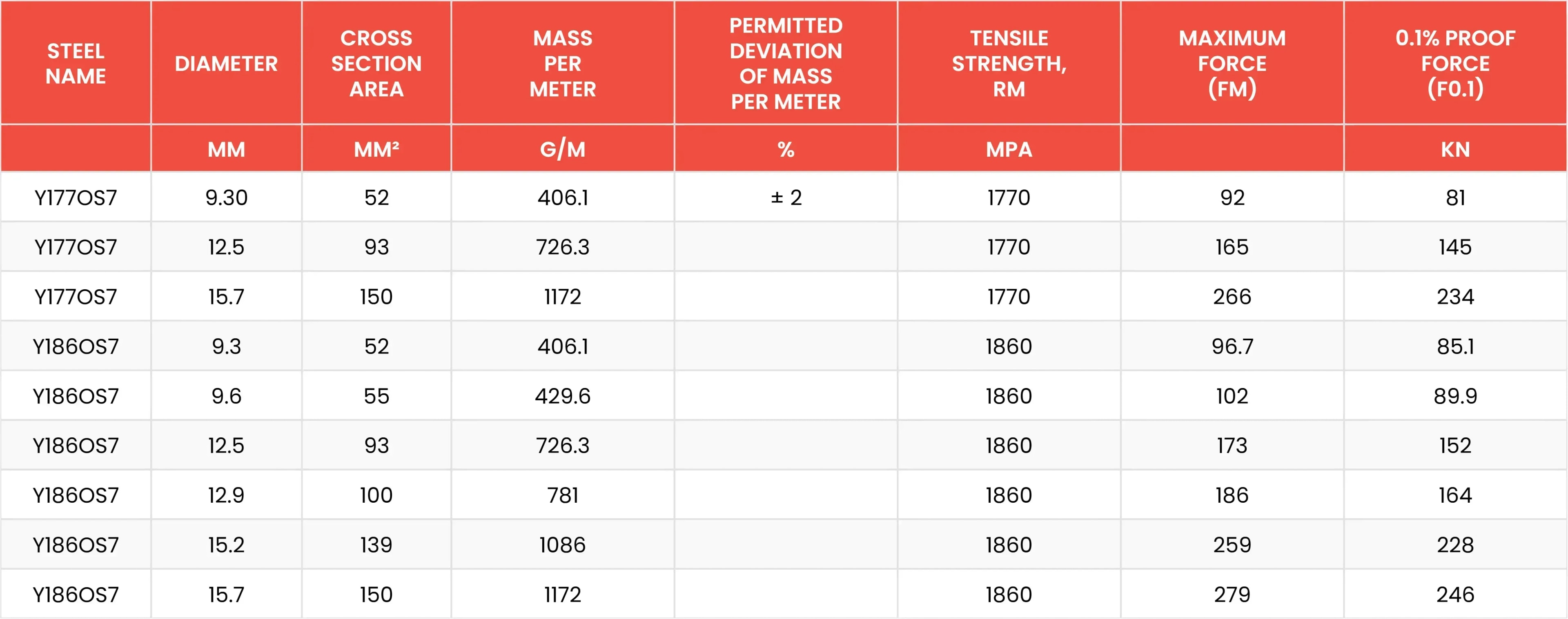

Technical Specifications
7-Wire PC Strands
According to BS 5896 Standard
EPCW supplies high-performance 7-wire prestressed concrete (PC) strands in multiple grades and sizes, engineered for high tensile strength, low relaxation, and consistent performance. All strands are manufactured in accordance with BS 5896 and other international standards.
.webp&w=3840&q=90)
- A) The modulus of elasticity may be taken to be 195 GPa (kN/mm2).
- B) The nominal mass per metre is calculated from the nominal cross-sectional area and a density of 7.81 kg/dm3.
- C) The specified characteristic value of the 0.1% proof force is calculated for all grades and diameters as 88% of the specified characteristic value of the maximum force.
For more details
Explore our PC wires and strands in the downloadable catalogue
